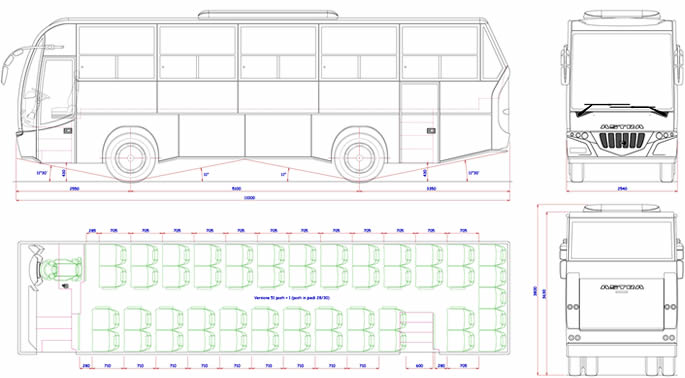

HD Bus su ASTRA HD9 4x4

Bus Heavy Duty off-road, 51/61 posti, allestito su cabinato ASTRA HD9.





GENERAL FEATURES OF THE CHASSIS

Trazione

4x4

Motore

IVECO CURSOR F3B - 380HP (optional: 440 HP)

Trasmissione

ZF manual gear (optional: ZF AsTronic gear)

Wheelbase

5100 mm

Cabina

White std, LHD version (available RHD version)

Sospensioni anteriori

Parabolic 4 leaves 24x90mm

Sospensioni posteriori

Parabolic springs, swivelling on central pin 4 leaves 40x100mm

Pneumatici

13R22,5 or 315/80R22,5 twin Pirelli (optional: 14.00R20 single)

Stabiliser bar

On 1st axle

Rear axle ratio

 1:5,009

Telaio

Special steel with high elasticity limit C section 320x90x10 Rail bending moment 202,020Nm

Equipment

Standard equipment for Euro3 vehicles





GENERAL FEATURES OF THE BUS

51/61 seats (TBD)

Dimensional compliance to CE standard 2001/85

Roll-over protection: compliance to ECE R66

Chassis built in carbon steel; underbody built in inox steel AISI 304

External cladding built in Peraluman 30/10 (alluminium alloy)

Thermal and acoustics insulation of the roof and side panels with sound absorbing and thermal insulating material

2 passengers doors with anti-crushing device

Laminated glass windscreen, panoramic, curved, with built-in sunshade band

Single windows with bottom sliding opening

Marine plywood floor covered with non-slip water resistant linoleum

Std white colour

High brightness led ceiling lights and blue night lights

Halogen ceiling lights on entry and driver’s seat that turn on automatically when the door opens

Sides and roof lining in scratch-resistant laminate

 2,1mc open luggage racks

18 kW single-circuit ducted air conditioning
